No tank or seat but you get the idea

No tank or seat but you get the idea

Nice little bracket for the solenoid

Solenoid bracket in progress

Switch strip 1

Switchgear about to get dismantled and rebuilt with (mostly) new cables

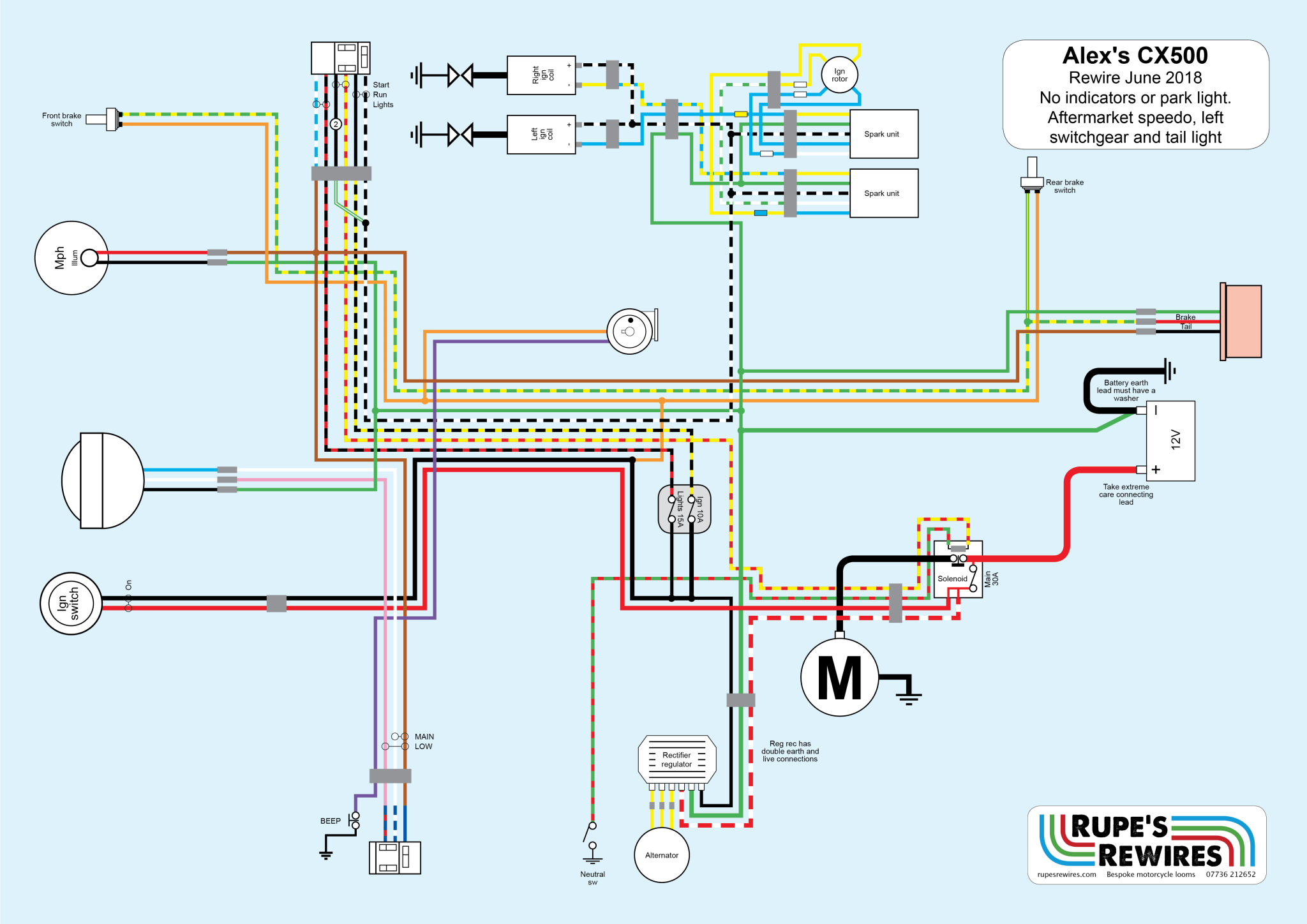

Honda CX500 rewire

Maggots scrub up quite nicely if you strip away enough gubbins to expose the engine and frame beneath the plastic. Alex had done almost all the work before he brought the bike along for a new loom.

As with most custom machinery it needed a few brackets making up, and a switchgear service (a clean, a few new cables and some silicone grease). Alex had tracked down an eBay battery case that fits under the engine. It saves a £150+ fabrication bill but doesn’t fit quite as tightly as a bespoke piece.

As it’s a 1980s bike there’s masses of room under the tank for cables and plugs. Most of the electricals are original Honda, including the period spark units (one was replaced) which also featured on CB750F fours and the like. The engine started first time and sounded LOUD.

Most of the cabling lives in a shallow tray under the seat

Existing holes used to mount the spark units and fuses under the seat

Exhausts sound like a WW1 aircraft warming up

Exhausts sound like a WW1 aircraft warming up
